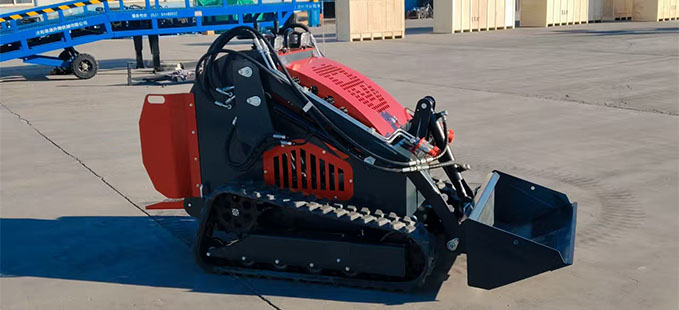

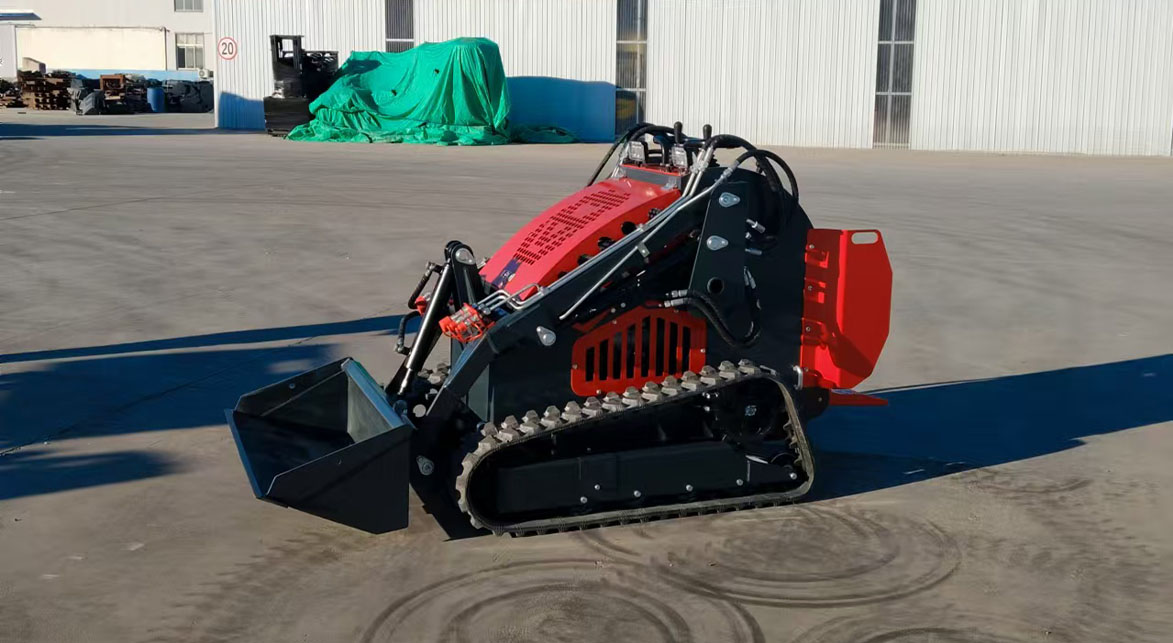

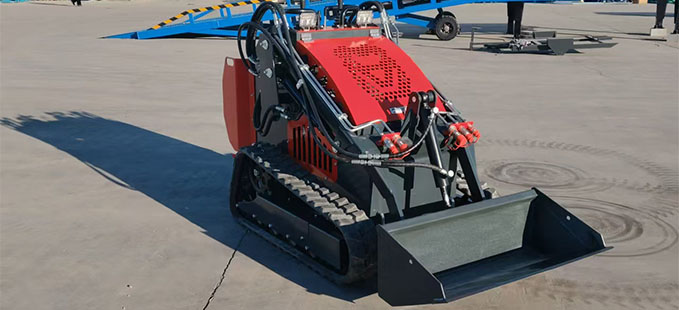

Jiye mini skid steer loader is a compact workhorse designed for tight spaces and varied job sites. It replaces manual labor in areas where larger machines can't go, making it ideal for landscaping, farming, construction, and municipal maintenance.
Compact & Agile
The narrow machine width allows easy access through standard doorways, narrow alleys, and basement entrances, perfect for both indoor and outdoor confined spaces.
Multi-Purpose
With a quick coupler system, one machine handles digging, loading, forking, sweeping, snow clearing, drilling, and more. Attachment changes are fast and tool-free.
Easy to Operate
Clear controls and good visibility make it beginner-friendly. Options include walk-behind, remote control, or traditional joysticks to fit different user preferences.
Simple Maintenance
The engine hood tilts open for full access. Filters and hydraulic hoses are clearly routed, making daily checks and service quick and easy.
Durable & Reliable
Key components are from proven brands. The reinforced structure supports long-hour continuous operation.
Typical Applications
Landscaping: soil moving, tree ball transport, paving
Farming: manure cleaning, feed handling, material
Construction: material, debris clearing, narrow trenching
Municipal: snow removal, leaf small repair jobs
Support & Warranty
We offer machine warranty and long-term spare parts support. Every unit is tested before shipment, and a test video is provided. Common wear parts are traceable and consistently available for years to come.
| Engine | Yanmar 380 | Max. operating height | 2450 mm | Wheel base (standard tires) | 720 mm |
| Rated power | 20-25 hp | Overall height | 1330 mm | Overall width (standard tires) | 1000 mm |
| Rated load | 350 kg | Overall length without bucket | 1680 mm | Bucket width | 1000 mm |
| Maximum load | 480 kg | Overall length with bucket | 2206 mm | ||
| Bucket volume | 0.12 m³ | Max. height unloading angle | 34° | ||
| Driving speed | 0-6 km/h | Unloading height | 1510 mm | ||
| Working three sums | 9 s | Unloading distance | 450 mm | ||
| Operation weight | 1200 Kg | Wheelbase | 850 mm |
